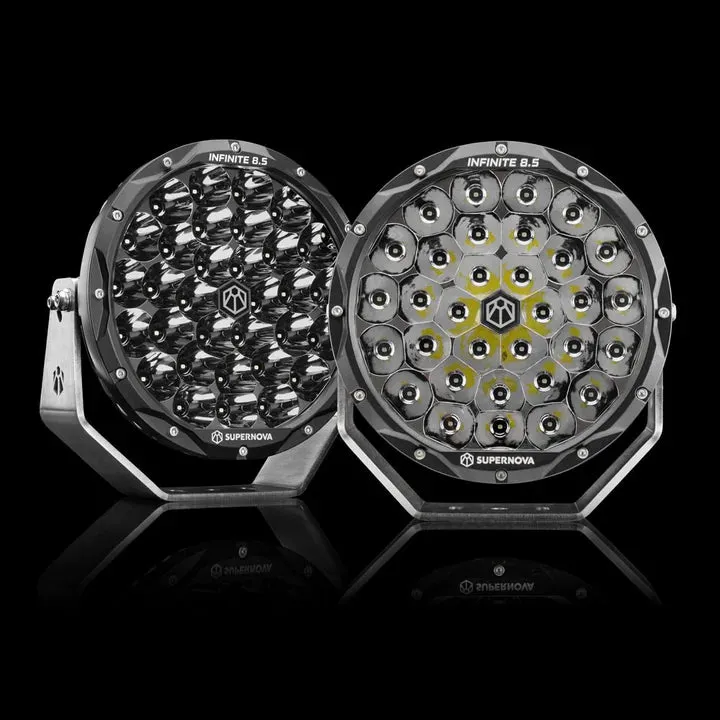

SUPERNOVA INFINITE 8.5 LED DRIVING LIGHTS

Name: Supernova Infinite 8.5 LED Driving Lights - PAIR
SKU: 976771

THE ULTIMATE, MODULAR DRIVING LIGHT.

Despite there being many driving lights on the market, we noticed they all suffered the same shortfall, requiring you to compromise flood for distance or vice versa. This results in needing additional lights to fill in the gaps or reach further distances. We wanted to remove that compromise from the equation, we wanted a driving light that would provide superior distance, quality and power right out of the box, yet still have the ability to overpower any other light on the market in spread and coverage. The result is a driving light that will dominate on any road you are driving on. Enter the Infinite 8.5

All the Supernova benefits to surpass Aussie conditions

General Electric Lexan lens - Near Indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers are needed.
DuPont black paint - Black that stays black - highest chip resistant coating.
Gore-Tex breather valve - 100% pressure equalisation and moisture venting.
5.5mm Marine Grade 316 Stainless bracket - more rigid and durable
CISPR 25 Class 3 Certified - Zero Radio/communication interference.
5700 Kelvin colour temperature - Daylight equivalent for low eye strain.
IP69K Waterproof - Highest Dust & Waterproof Rating - Pressure wash safe.
Lifetime warranty - No strings, our driving lights are made to last!
Fast Fit Wiring Harness - Easy plug-and-play installation.

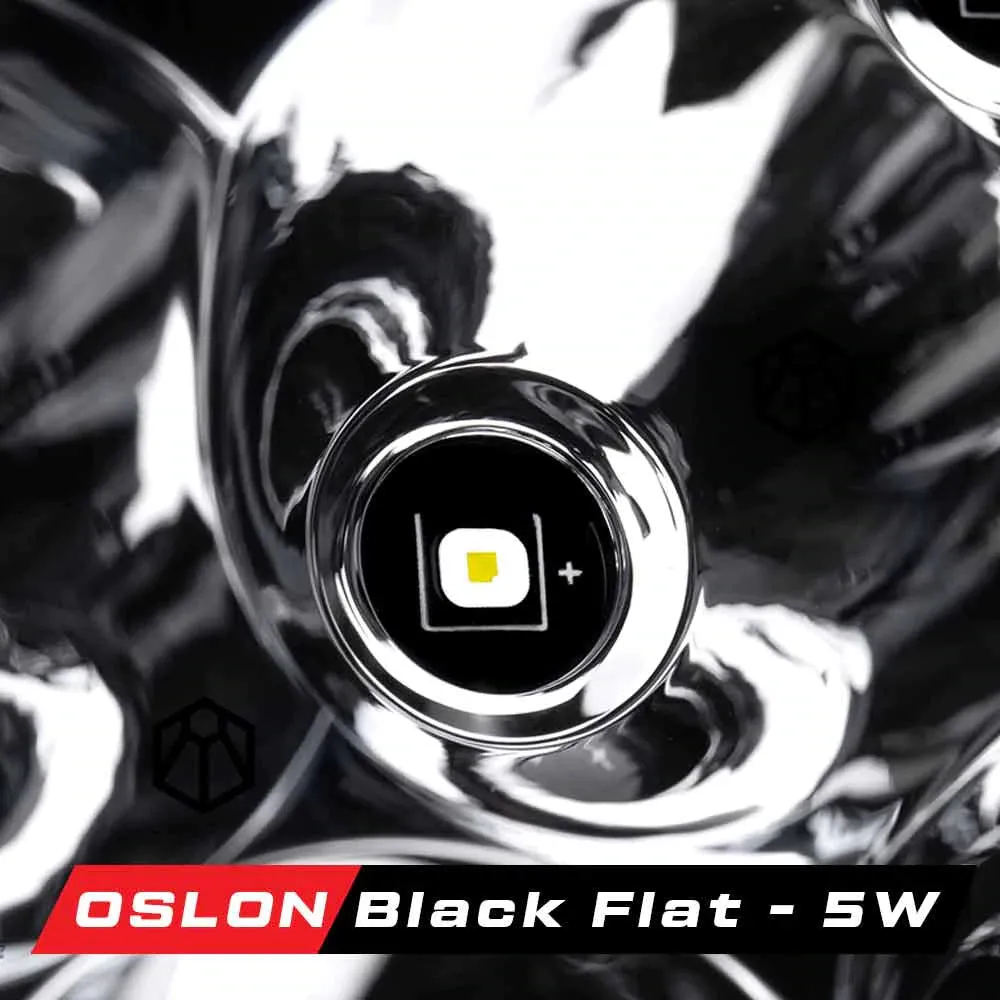

Osram Oslan Black Flat LEDs - Highest Lumen Per mm² (2021)

AUSTRALIAN REGISTERED DESIGN:202016974

MODULAR.

WE'VE GOT YOU COVERED… 180 DEGREES.

OUR MOST POWERFUL LIGHT YET!

Rated at 312W Per Pair, the Infinites are equipped with Osram's highest performance automotive LED, the Black Flat. Not only are the Black Flats in another league to any other Osram chip, but they have the highest efficiency and lumens per mm² out of any other driving light LED on the market. A combination of both wide spread and hyper spot is achieved from each reflector using our bespoke multi output design, engineered from the ground up to suit the Black Flat LEDs.

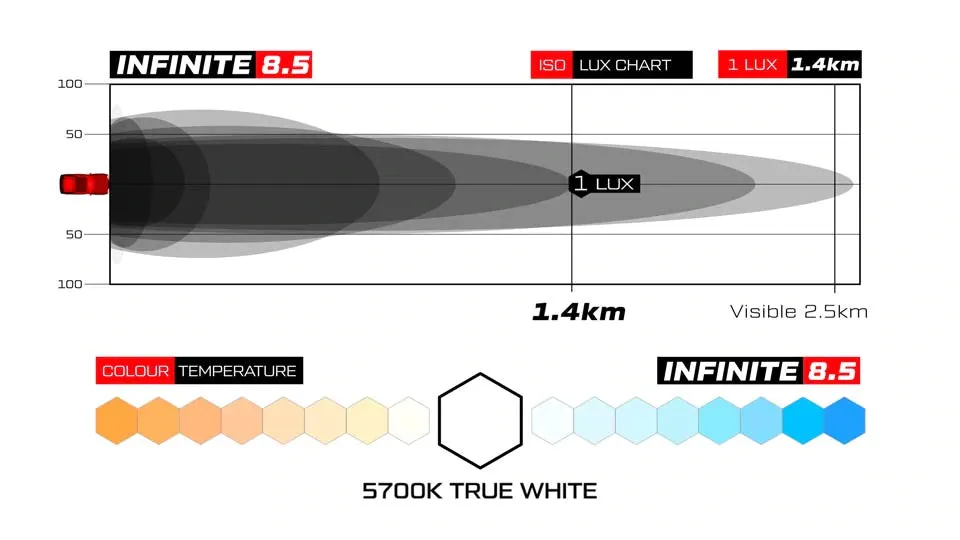

Wide 1 Lux at 1.4km Distance
Wide Spread Flood out to 120°
312W producing 31,480 Lumens

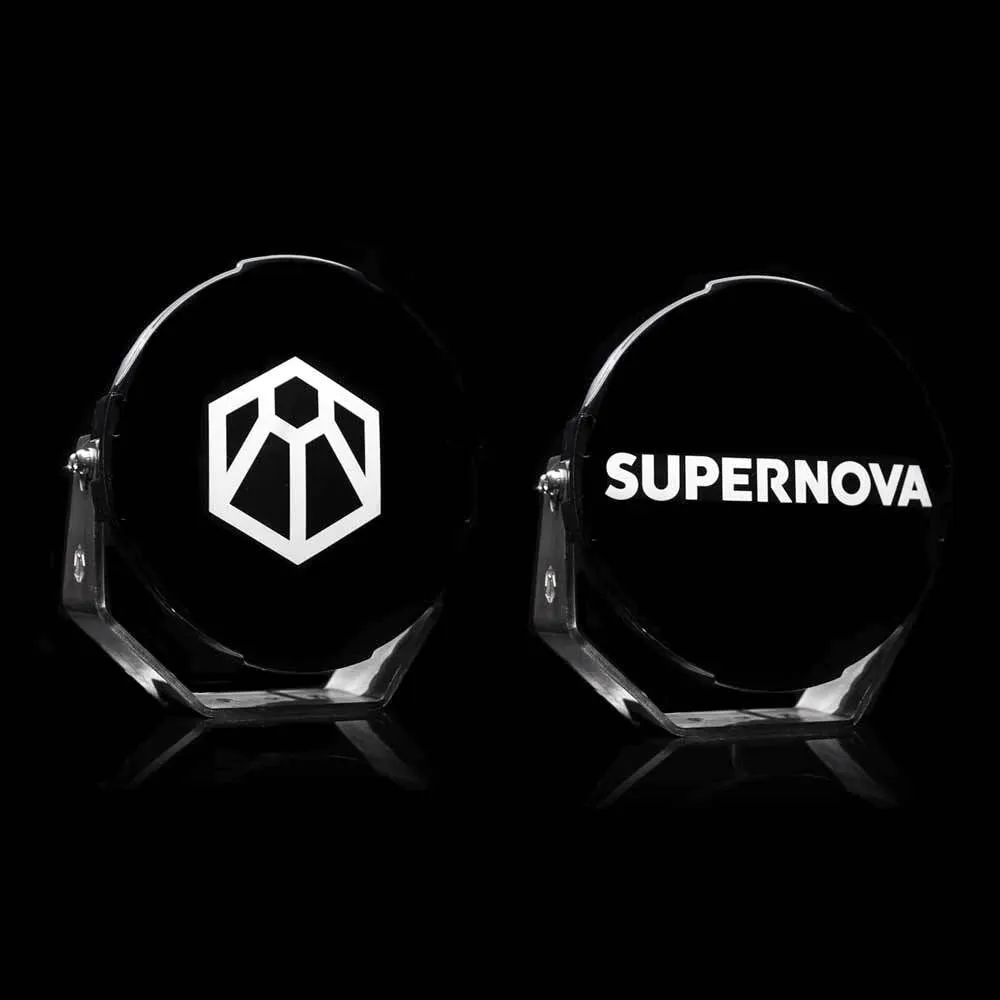

INCLUDED PATTERN MODIFYING COVERS.

Different roads demand different light output for optimal coverage. Designed with adaptation in mind, the Infinite 8.5’s can be equipped with our included Horizon Covers to unlock a much wider output pattern, increased spread and flood off to the sides and a unique 180° of coverage, perfect for high country roads and hitting the tracks.

Output With Horizon Covers Equipped:
Over 1.3km Distance Maintained
Widened Centre Spread to 140°
180° of Edge to Edge Flood Coverage

2 X HORIZON COVERS INCLUDED

LAST A LIFETIME - GUARANTEED!

Lifetime warranty is just the result of the impeccable standard we build out lights to. With a no corners cut approach, we integrated only the most durable and highest quality components to achieve a driving light that will outlast your vehicle.

Upgraded stainless steel bracket to a stout 5.5mm thickness to battle the harshest of corrugations
Lexan lens for virtually indestructible protection and optimal light transmission

BREATHER VALVE EQUALS LONGEVITY.

With an IP69K Rating, the Infinite 8.5's have the highest water and dustproof rating available. However as the lights heat up and cool down over use, the air inside will expand and contract with the temperature. Should the atmosphere inside the unit not be equalised the seals will be pushed to their limit and fail, causing any IP rating to go out the window. We are able to achieve Lifetime Warranty faith as we have equipped all our driving lights with Gore-Tex Breather Valves to ensure the seals never fail.

WIRING HARNESS INCLUDED

WHAT'S INCLUDED:

2 x Supernova Infinite LED Driving Lights

2 x Supernova Horizon Covers
2 x Stainless Steel Security Torx Mounting Kits

2 x Vibration Isolation Gasket
1 x Fast Fit Dual Wiring Harness

For newer vehicles with LED, HID or Xenon headlights, vehicle-specific adapters will be required.

Please Note: The Deutsch connector features 3 wires (2 for driving lights, 1 for DRL), the DRL wire (yellow) can be connected to an auxiliary power source (eg. parkers) on your vehicle for daytime functionality.

LENS	GE Lexan Lens 3mm - Indestructible
LEDs	32X OSRAM OSLON Black Flats - Highest lumen density
LED Thermal Resistance	3.0 K/W - Lower equates to superior cooling
Candela	1,601,793
FINISH	DuPont Midnight Paint
FASTENERS	316L Marine Stainless With Torx Security Bolts
DRL	Osram
WATERPROOF RATING	IP68 - IP69K
WARRANTY	Lifetime
1 LUX DISTANCE	1.4KM - Visible Distance up to 2.2km
INPUT VOLTAGE	10-30V DC
POWER DRAW	156W - EACH ( /- 5%)
LUMEN MAINTENANCE	LM-80 50,000 Hours
LUMENS	31,480 (Pair)
INCLUDED WIRING HARNESS	14 Gauge Dual DT Output, Negative and Positive switched headlight compatible
COLOUR TEMPERATURE	5700K @ 87 CRI
WEIGHT (per unit)	3.5 KG Total (includes Horizon cover, bracket and fasteners)
